IEC61850 Driver Configuration Section




The information in this document applies to latest revision.

This driver is made by two modules: iec61850driver.dll and iec61850client.exe

Manual configuration:

Step 1:


Browsing of available IEC61850 itemID's

Open a command shell windows and run the command, that will create the file domain_name.sql in C:\scada\project:

cd C:\scada\bin

iec61850client.exe -a server_IP_address -p 102 -t 1000 -e dump_variables

Example:

C:\scada\bin>iec61850client.exe -a 127.0.0.1 -p 102 -t 1000 -e dump_variables

Step 2:


Creation of protocol configuration database

Go to C:\scada\bin and run protocol_configurator.exe

Import the C:\scada\project\domain_name.sql, selecting the C:\scada\project\domain_name.sql with the menu: File->Import->Database from SQL file

At the question: Do you want to create a new database file to hold the imported data?

Answer: Yes

The database name should be your domain name with extension .db

Save it in C:\scada\project

If you do not use your_domain_name.db name, the Step 3 will fail.

Example: simpleIOGenericIO.db

Wait for few seconds the Import Completed confirmation Window

Step 3:


Creation of the new SCADA points

1 - Select the menu: Configure\Configure Units

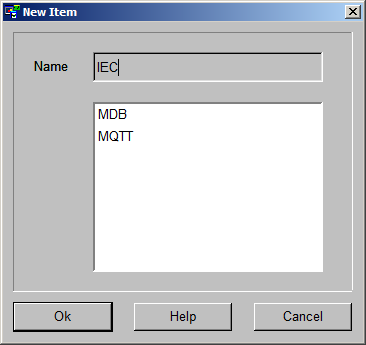

2 - Press button New

3 - Fill in the edit field Name: IEC

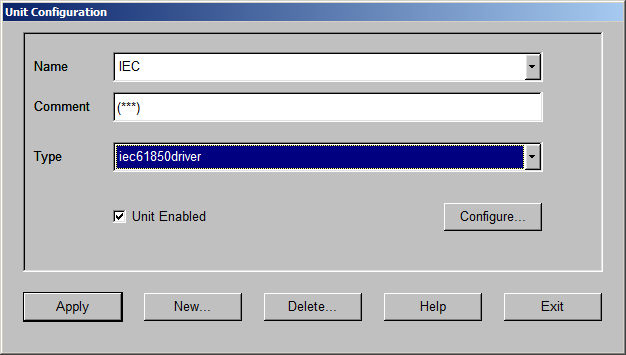

4 - Select Type iec61850driver, flag Unit Enabled and press Configure button

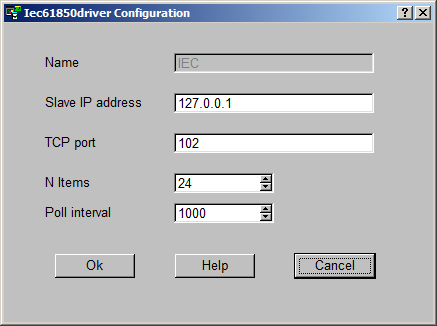

5 - Fill in the Slave IP address, TCP port, number of Items and Poll Intervall in milliseconds.
6 - Press button Apply and wait that the Apply button returns active and then press Exit

7 - Restart monitor.exe

1
2
3
4
5
6
7

Step 4:


Configure each sample point

8 - Select the menu: Configure\Configure Sample Points

9 - Set Comment, Type, Units and the limits of each new point. Press button Apply

- Set type M_SP_TB_1 for digital point

- Set type M_ME_TF_1 for analog point

8
9

Step 5:


HMI configuration with HMI designer

10 - Run the process C:\scada\bin\hmi_designer.exe

11 - Open the XML designer file in C:\scada\project\hmi0.ui

11.1 - Or create from scratch your HMI (dialog) and save it as hmi0.ui in C:\scada\project

11.2 - It is possible to create from scratch your HMI (dialog) and save it as hmi1.ui or hmi2.ui upto hmi9.ui in C:\scada\project

12 - Use the following widget classes

Widget Class
SINGLE POINT LED PSinglePointLed
DOUBLE POINT LED PDoublePointLed
SINGLE POINT LED SinglePointLed
DOUBLE POINT LED DoublePointLed
SWITCH PSwitch
THERMOMETER QwtThermo
LCD NUMBER PLCDNumber
COMMAND BUTTON QPushButton
TANK PTank
THERMOMETER PThermometer
EDIT FIELD QLineEdit
BREAKER Breaker



13 - Widget names MUST contain the underscore _ as separator between sample point SCADA name and widget ID

For example the widget with SCADA name OPCSample09 and ID 1 has full name: OPCSample09_1

Please see next image 1

1
14 - To enable the inspect popup window, please follow the procedure:

You have to connect the signals RightClicked(QString&,QString&) of the widgets with the slot RightClicked(QString&,QString&) of the HMI dialog (here Form1)
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
Final result
Working popup on HMI


15 - To enable commands, please follow the procedure:

Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9


Meaning of led colors for SinglePointLed

Led colorInternal SCADA valueComment
single0000.png0Green means state off
single0001.png1Red means state on
single0002.png2Yellow is not used for Single point
single0003.png3Yellow is not used for Single point
single0004.pngWhite means HMI state none or Invalid
single0005.pngBlue means Communication driver error state or Invalid


Meaning of led colors for DoublePointLed

Led colorInternal SCADA valueComment
double0000.png0Yellow means Indeterminate or Intermediate state
double0001.png1Green means Determinate state off
double0002.png2Red means Determinate state on
double0003.png3Yellow means Indeterminate state
double0004.pngWhite means HMI state none or Invalid
double0005.pngBlue means Communication driver error state or Invalid
