Master IEC 104 Protocol Configuration Section



This procedure applies with last revision

This driver is made by the two modules: iec104driver.dll and iec104master.exe
iec104master.exe is the protocol implementation, while iec104driver.dll is a bridge with monitor.exe process

Creation of the new points

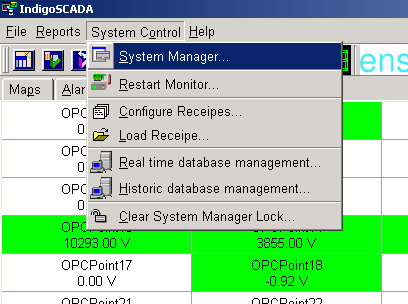

1 - Select the menu: System Control\System Manager

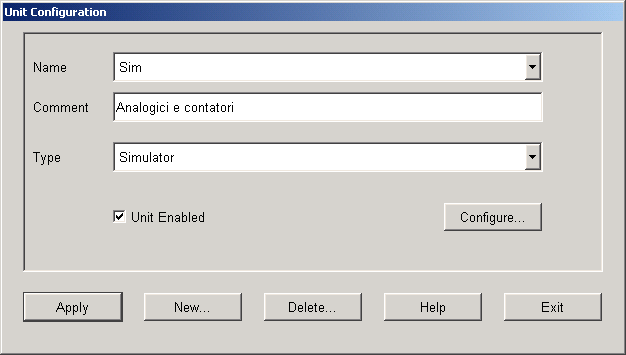

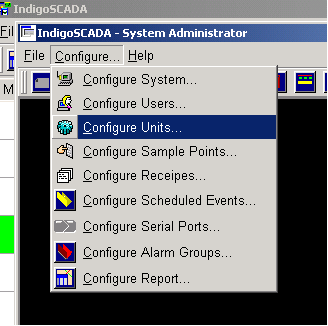

2 - Select the menu: Configure\Configure Units or "SCADA line"

3 - Press button New

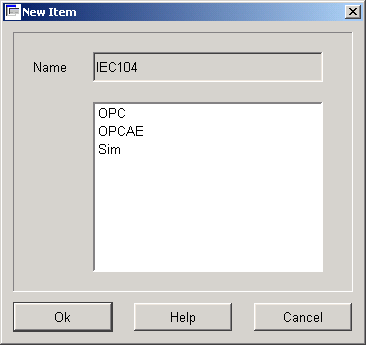

4 - Fill in the edit field Name: IEC104 or a name containing the word IEC104, e.g. IEC104A, IEC104B, ...

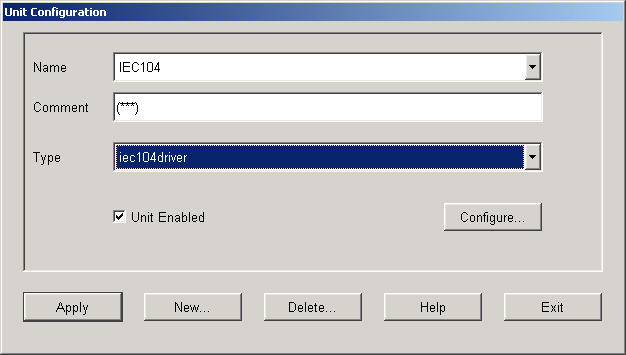

5 - Select Type iec104driver, flag Unit Enabled and press Configure button

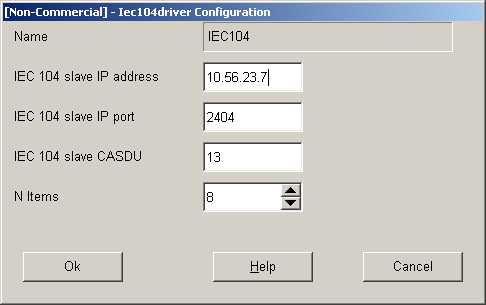

6 - Fill in the IEC 104 Server (or slave) IP address, the IEC 104 Server TCP port (e.g. 2404,2405, ...), the CASDU (i.e Common Address Of Asdu of the Slave) and number of points
We assume here that each RTUs has it own port, and associated CASDU, different from the other RTUs

7 - Press button Apply, wait that the Apply button return active and then press Exit

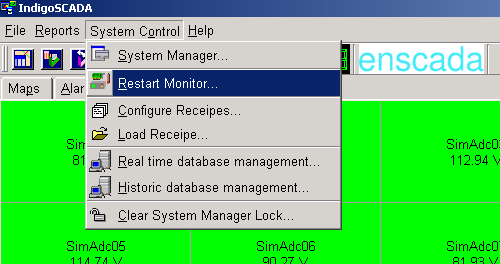

8 - Restart monitor.exe

Add the new points to HMI

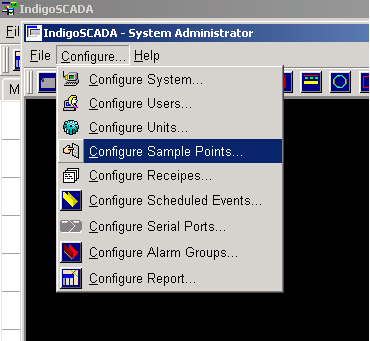

9 - Select the menu: Configure\Configure Sample Points

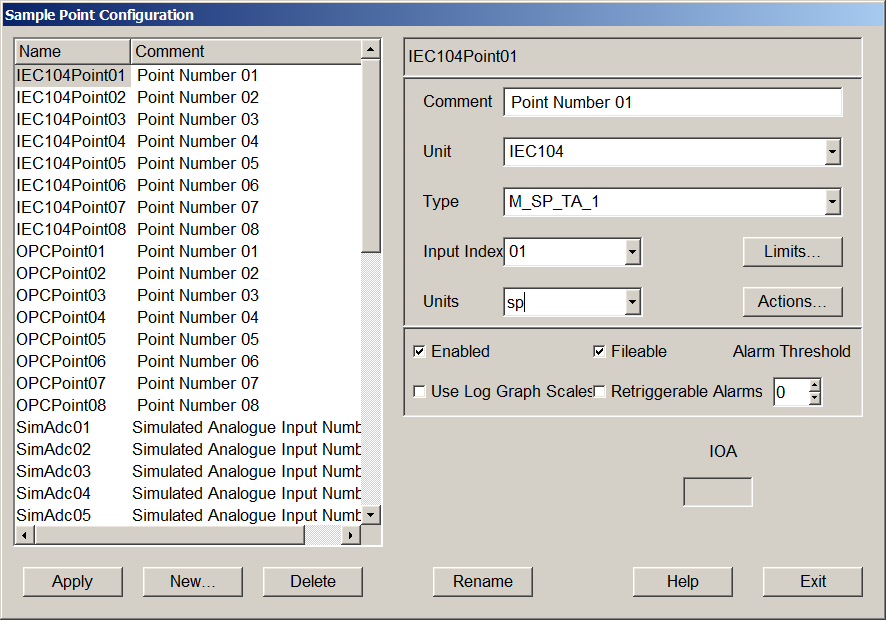

10 - Set Comment, Type, Units and the limits of each new point. Press button Apply

- Set type M_SP_TA_1 for digital points

- Set type M_ME_TC_1 for analog points

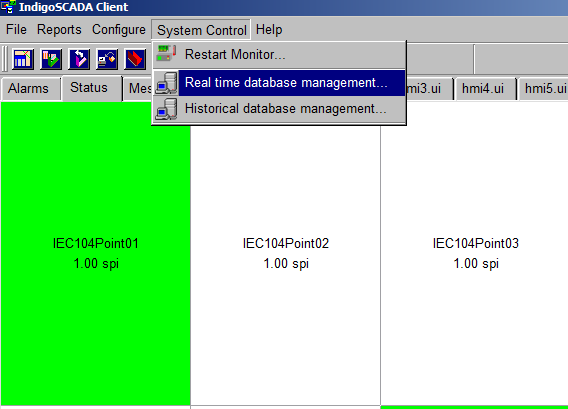

11 - Open table TAGS of real time DB

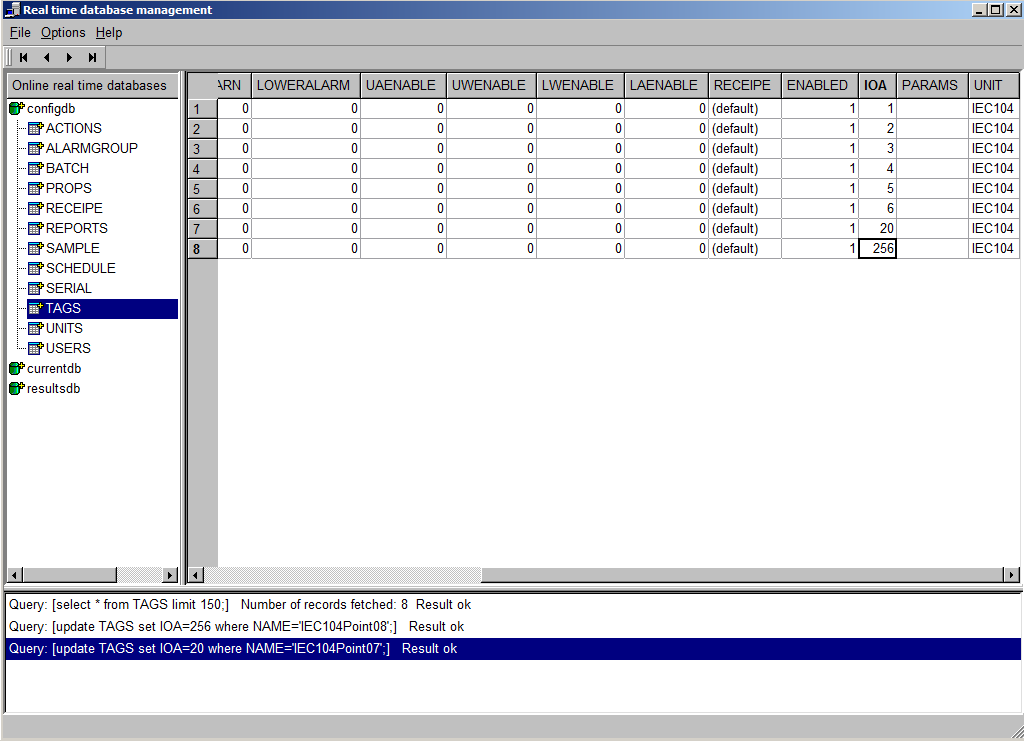

12 - Configure IOA of every point

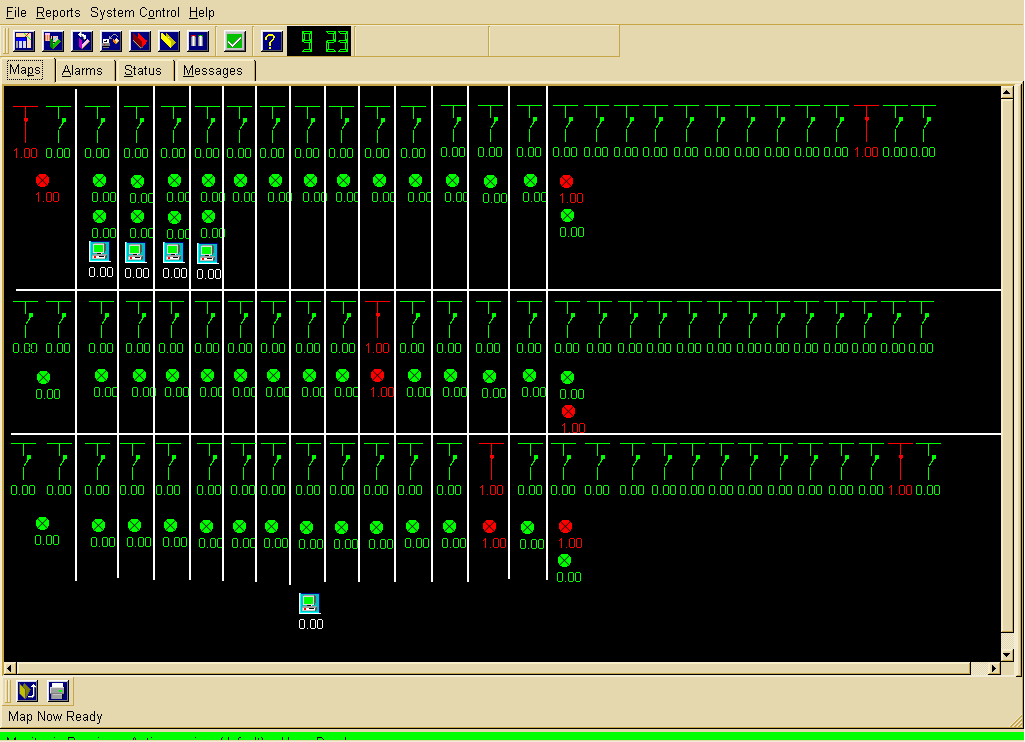

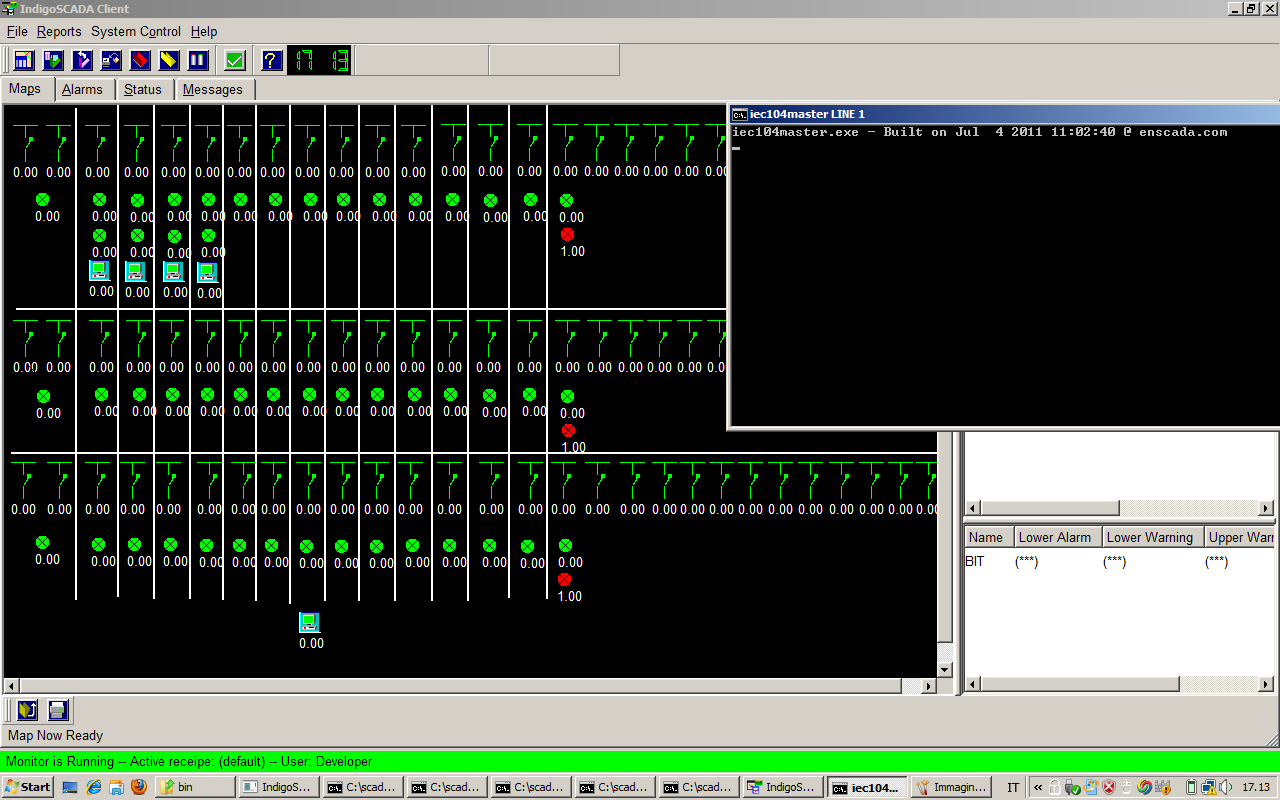

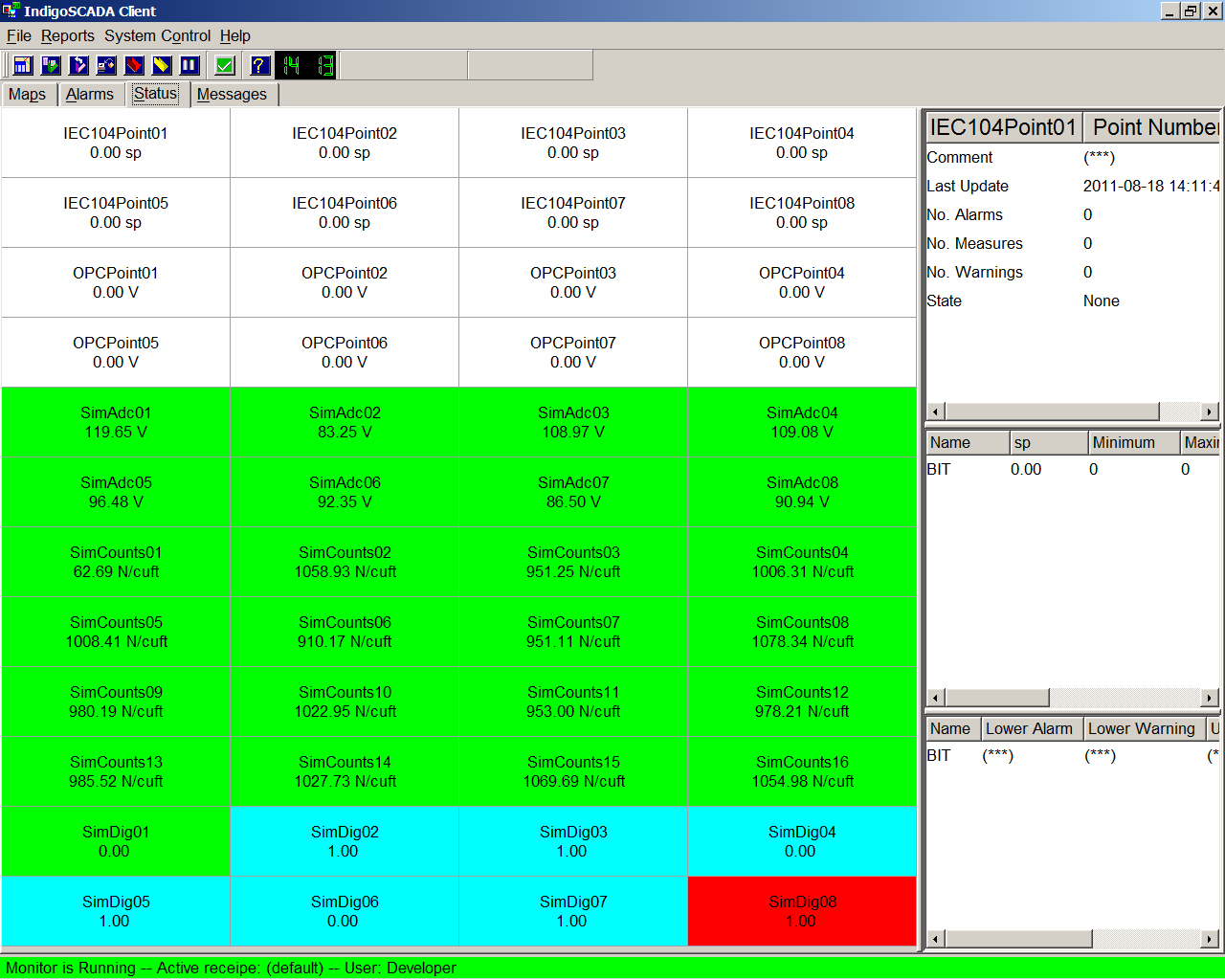

13 - New IEC104 sample points are visible and are updated with the values coming from the IEC 104 server.

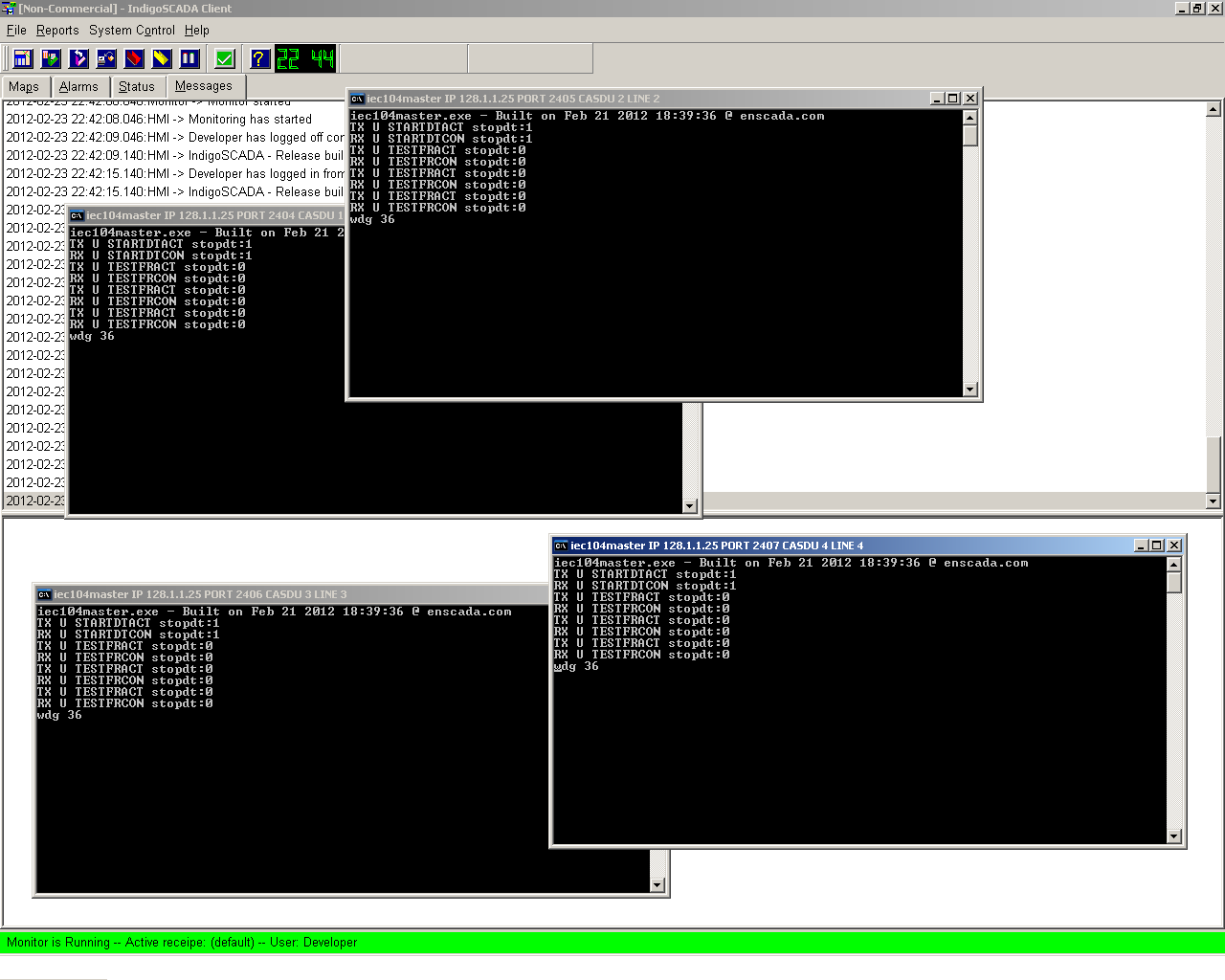

It is possible to configure multiple Units. Every Unit represent a SCADA line

14 - Please note that at the moment on Sourceforge site there is only a part of the Master IEC 104 Driver. If you are interested in Master IEC 104, please contact us

1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
Image nameImageInternal SCADA valueComment
single0000.png single0000.png0Green means state off
single0001.png single0001.png1Red means state on
single0002.png single0002.png2Yellow is not used for Single point
single0003.png single0003.png3Yellow is not used for Single point
single0004.png single0004.png4White means HMI state none or Invalid
single0005.png single0005.png5Blue means Communication driver error state or Invalid


Image nameImageInternal SCADA valueComment
double0000.png double0000.png0Yellow means Indeterminate or Intermediate state
double0001.png double0001.png1Green means Determinate state off
double0002.png double0002.png2Red means Determinate state on
double0003.png double0003.png3Yellow means Indeterminate state
double0004.png double0004.png4White means HMI state none or Invalid
double0005.png double0005.png5Blue means Communication driver error state or Invalid
